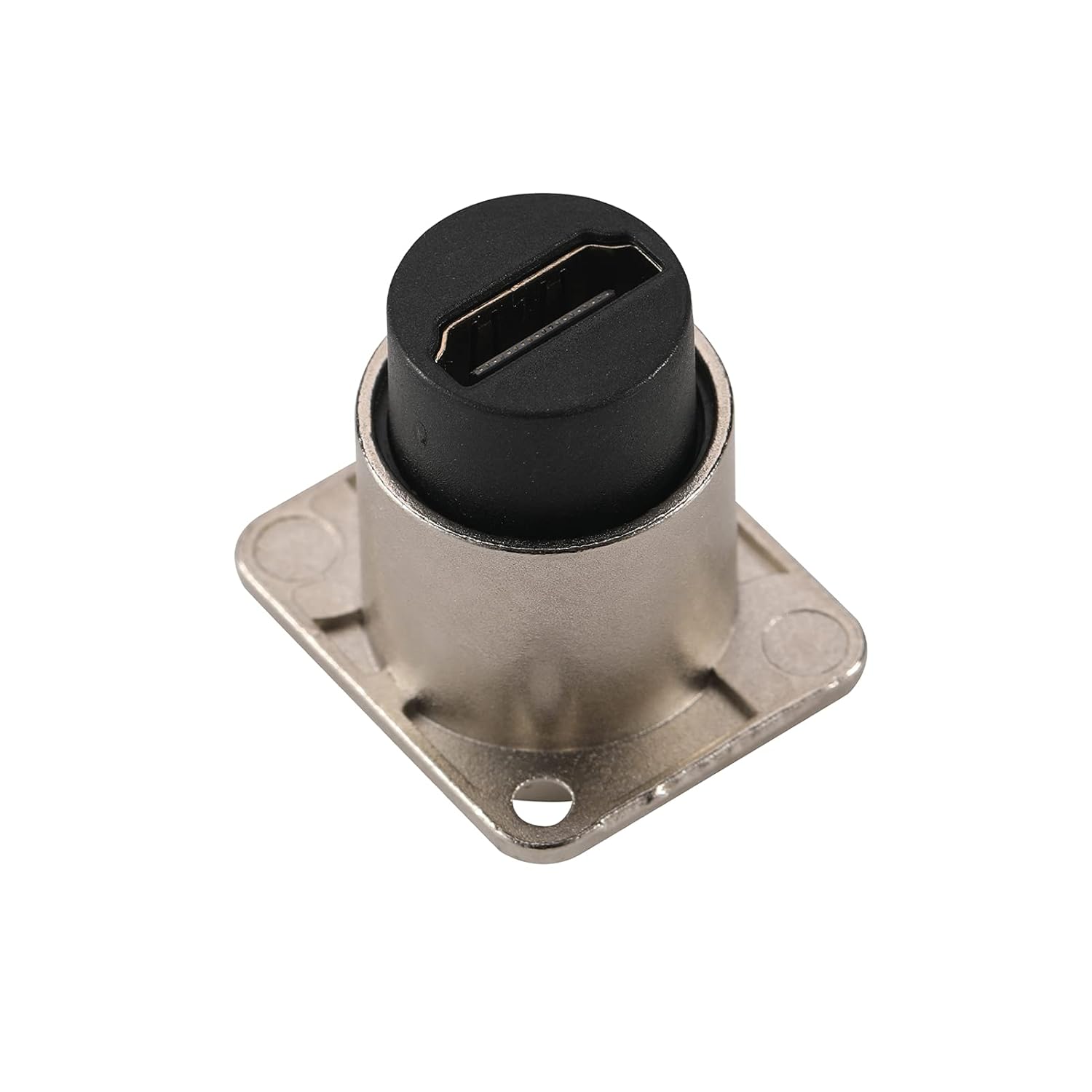

2PCS HDMI Waterproof Connector, Metal Shell M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap

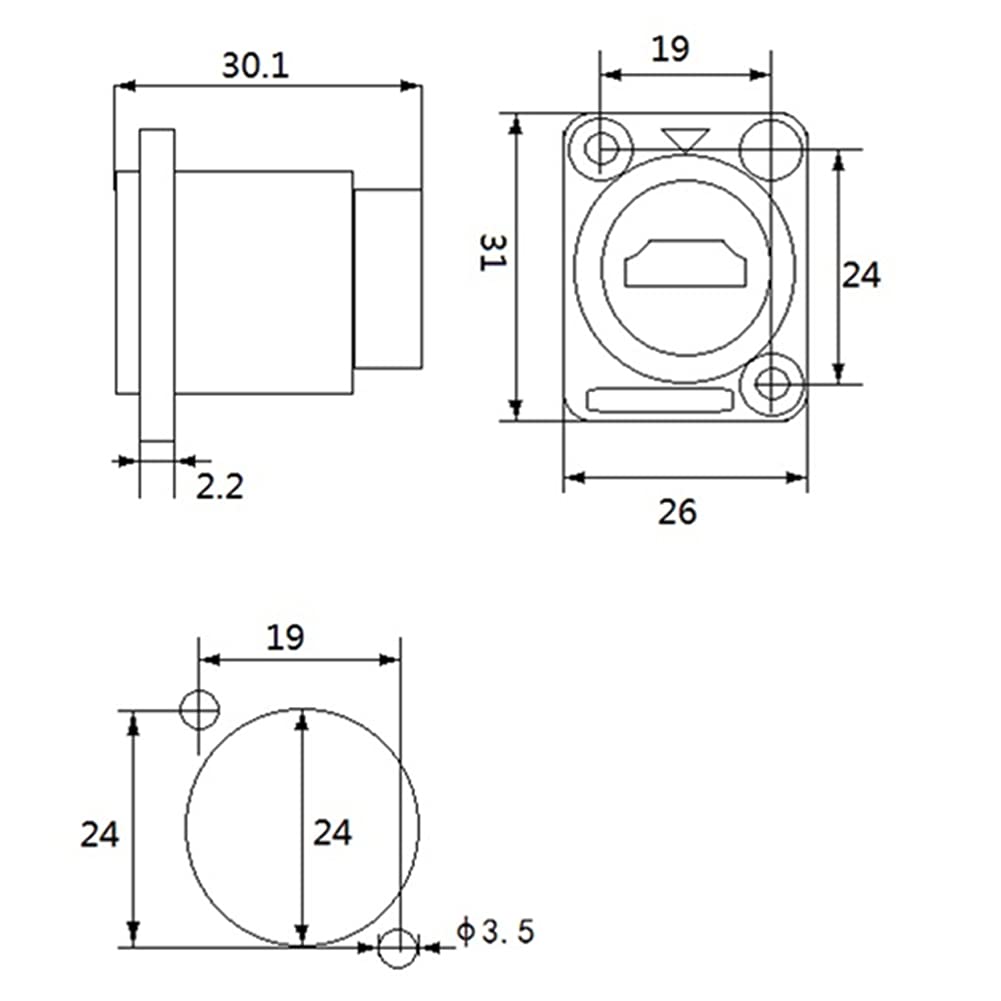

Technical Specifications: Number of cores: 19 pin Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover) Connection type: HDMI (standard port) Electrical parameters: Rated current: 1.5A Rated voltage: 50V Insulation resistance: ＞500MΩ Dielectric strength: DC1000V Contact resistance: ＜10mΩ Material: Shell: Zinc diecast (ZnAl4Cu1) Shell plating: nickel plating/black electrophoretic paint Contact material: Bronze (CuSn8) Contact pin gold plating: 7µm Au over Ni plating Insulator material: PBTP 15% GR Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40～120Celsius Storage temperature: -25～85Celsius Atmospheric pressure: 86～106kPa Relative humidity: ≤90% RH Mechanical parameters: Insertion pressure: less than 10N Withdrawal pressure: less than 10N Service life: more than 1000 times Installation panel thickness: min 2.0mm-max 10mm Base shape: D type NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap. Package includes: 2 x Panel Mounting HDMI Waterproof Connector

• DURABLE: This HDMI connector is made of Zinc diecast (ZnAl4Cu1), flame retardant, UV resistant, and anti-aging.
• Perfectly supports 4K HDR 1080P 60FPS. Bandwidth up to 18Gbps.
• The contact pin is phosphor bronze (CuSn8) plated with 7µm Au, which is more sensitive to contact.

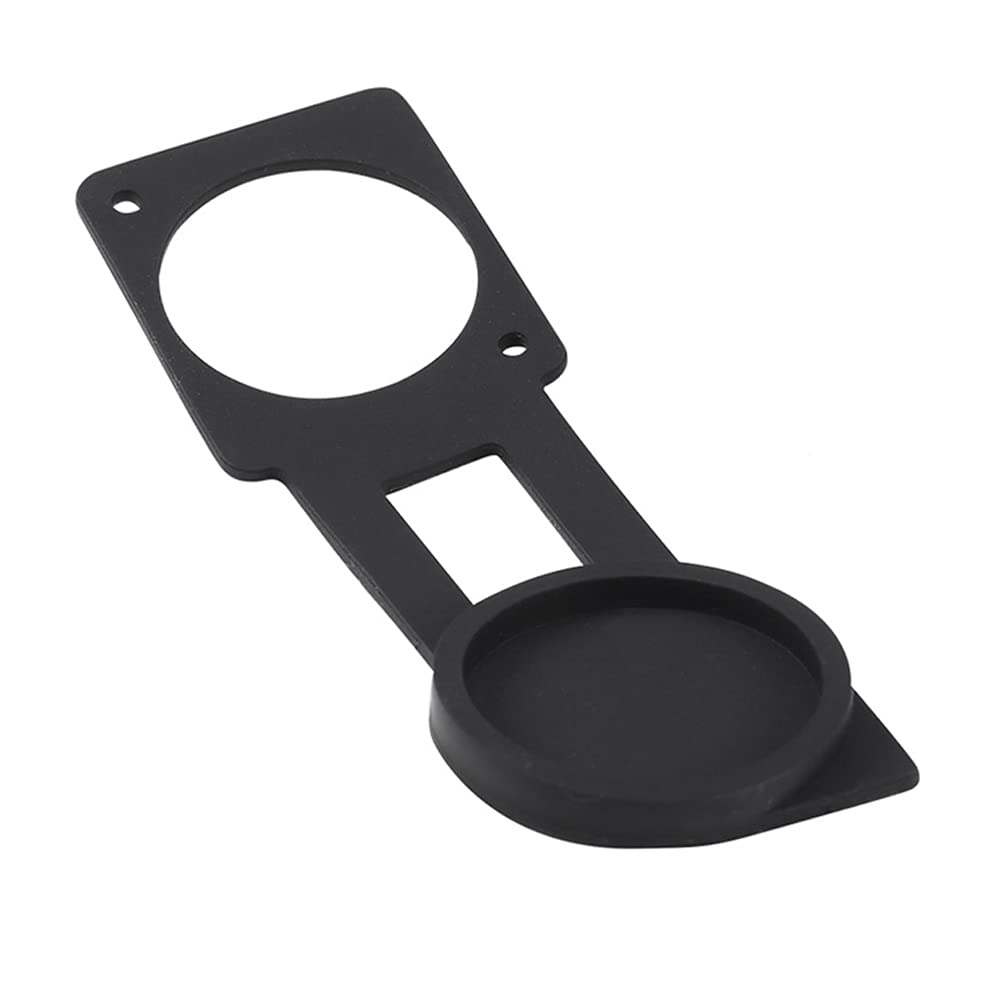

• The industrial panel mount bulkhead includes a water/dust cap that meets IP67 Waterproof Protection.
• Standard D-Series Connector for Panel-Mount Installations, and save installation space, HDMI female to female field installable coupler, no soldering, no installation tools, just plug the standard hdmi head directly for quick installation.
